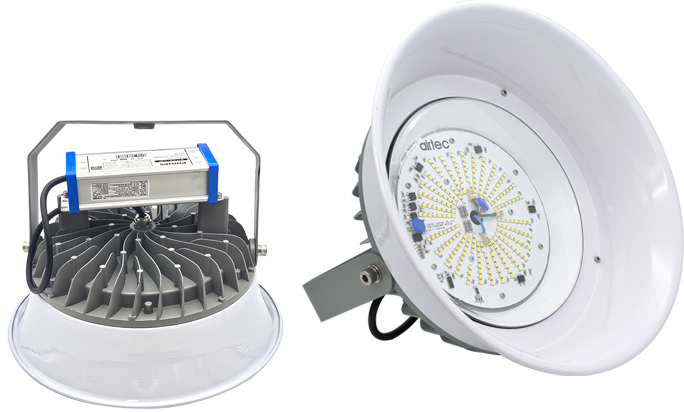

Highbay light (AC/DC)

  • · Excellent durability and light weight
  • · I Bolt or wall type and tilting method available
  • · Install bracket is basic configuration
  • · Waterproof and dustproof rating IP67, Surge resistance 4.0kV
  • · Chain type, nipple type, pipe type available for common use
  • · Made to order for freezing warehouse (Available at -40℃)
  • · Factory, Logistics warehouse, Sports facility, Freezing warehouse, etc

Specification

Class Model Watt-
age
(W)		 Lumen
(lm)		 Effici-
ency
(lm/W)		 Col.Temp
(K)		 Certifi-
cate
AC AC-80 80 8,800 ↑ 110 ↑ 5,700 KS, HE
AC-100 100 11,000 ↑ 110 ↑ 5,700 KS, HE
AC-120 120 13,000 ↑ 110 ↑ 5,700 KS, HE
AC-150 150 15,500 ↑ 110 ↑ 5,700 KS, HE
AC-200 200 22,000 ↑ 110 ↑ 5,700 KS, HE
DC DC-80 80 10,000 ↑ 115 ↑ 5,700 KS, HE
DC-100 100 11,500 ↑ 115 ↑ 5,700 KS, HE
DC-120 120 13,800 ↑ 115 ↑ 5,700 KS, HE
DC-150 150 17,250 ↑ 115 ↑ 5,700 KS, HE
DC-200 200 23,000 ↑ 115 ↑ 5,700 KS, HE
DC-300 300 33,000 ↑ 115 ↑ 5,700 KS, HE

Drawings

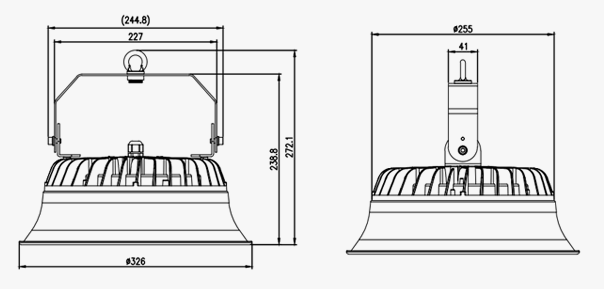

  • AC80W~AC150W

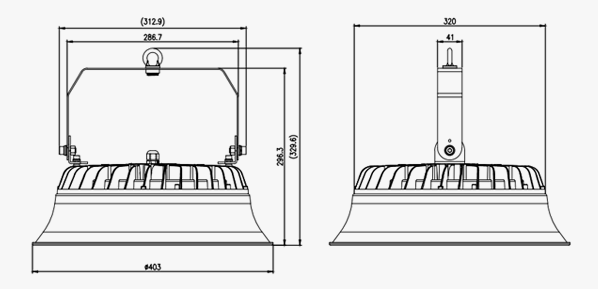

  • AC200W

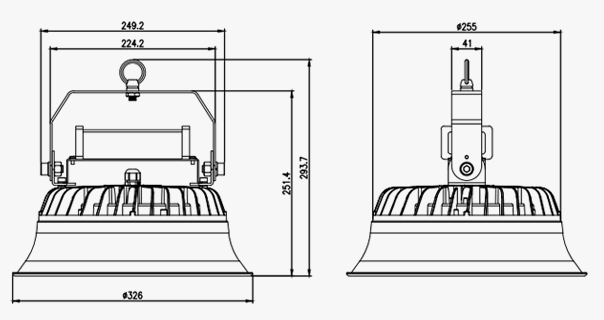

  • DC80W ~ DC200W

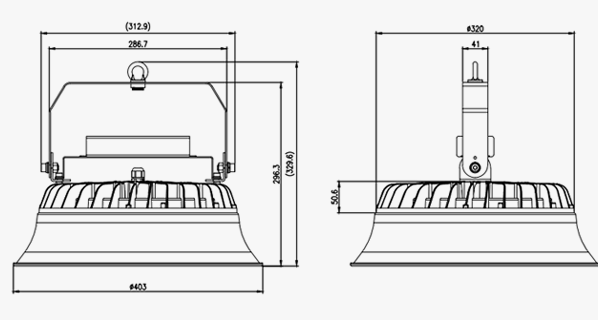

  • DC300W
