Raceway light (Wide)

  • · Eco-friendly certification
  • · Excellent heat dissipation (Metal PCB)
  • · No lifetime shortening caused by frequent switch on/off
  • · Prevent intrusion of pests
  • · PCB leakage prevention sheet
  • · Insulating, Flickr-free SMPS
  • · Effective energy-saving products
  • · Improved light efficiency compared to existing raceway lights
  • · Wide Diffusion Plate Application
  • · Efficient parking lot management with group dimming remote control
  • · LED Package : Seoul Semiconductor,Samsung LED
  • · Apartment, School, Hospital, Store

Specification

Model Type Watt-
age
(W)		 Lumen
(lm)		 Effici-
ency
(lm/W)		 Col.Temp
(K)		 Beam
( ° )		 Dimen-
sion
(mm)		 Certified
PLL-018W578SS6 Always 18 2,500 ↑ 155 ↑ 5,700 107 1,282 x 73 x 51 KS,HE
PLL-040W578SS6 Always 40 5,500 ↑ 145 ↑ 5,700 107 1,282 x 73 x 51 KS,HE
PLL-018W578SGD Dimming 18 2,500 ↑ 155 ↑ 5,700 107 1,282 x 73 x 51 KS,HE
PLL-040W578SGD DImming 40 5,500 ↑ 145 ↑ 5,700 107 1,282 x 73 x 51 KS,HE

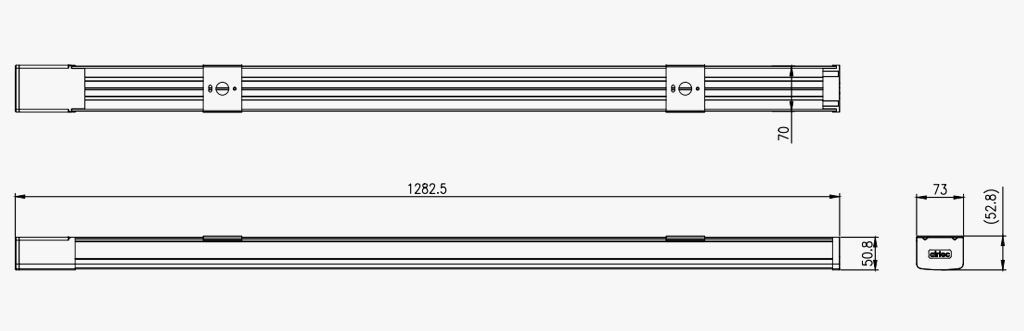

Drawings
