Products

Provide the best solution
based on the best technology
and expertise.
Certificates

Flat Panel light

  • · Eco-friendly certification
  • · Excellent heat dissipation
  • · No lifetime shortening caused by frequent switch on/off
  • · Prevent intrucsion of pests
  • · PCB leakage prevention sheet
  • · Effective energy-saving products
  • · Insulating, Flickr-free SMPS
  • · LED Package : Samsung LED
  • · Apartment, School, Hospital, Store

Specification

Model Type Watt-
age
(W)
Lumen
(lm)
Effici-
ency
(lm/W)
Col.Temp
(K)
Beam
( ° )
Dimen-
sion
(mm)
FLNB-025W578S No drilling 25 2,750 ↑ 110 ↑ 5,700 110 640 x 320 x 26
FLMA-040W578SS2 Buried 40 4,400 ↑ 110 ↑ 5,700 110 1285 x 320 x 51.7
FLMA-050W578S Buried 50 5,500 ↑ 110 ↑ 5,700 110 1285 x 320 x 51.7
FLNA-040W578S No drilling 40 4,400 ↑ 110 ↑ 5,700 110 1285 x 320 x 49.4
FLNA-050W578S No drilling 50 5,500 ↑ 110 ↑ 5,700 110 1285 x 320 x 26
FLMB-040W578S Buried 40 4,400 ↑ 110 ↑ 5,700 110 640 x 640 x 49.4
FLNB-040W578S2 No drilling 40 4,400 ↑ 110 ↑ 5,700 110 640 x 640 x 26
FLMB-050W578S Buried 50 5,500 ↑ 110 ↑ 5,700 110 640 x 640 x 26
FLNB-050W578S No drilling 50 5,500 ↑ 110 ↑ 5,700 110 640 x 640 x 26

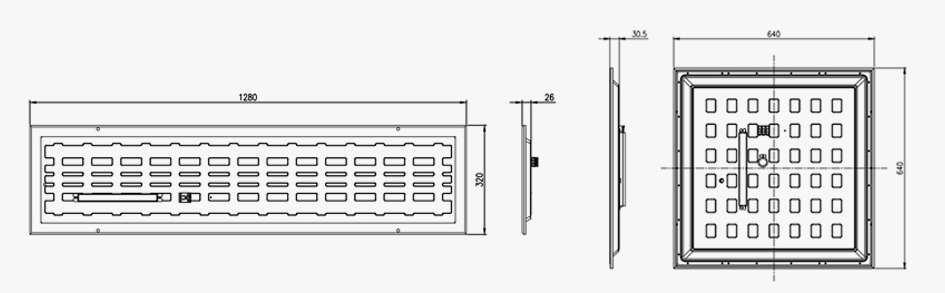

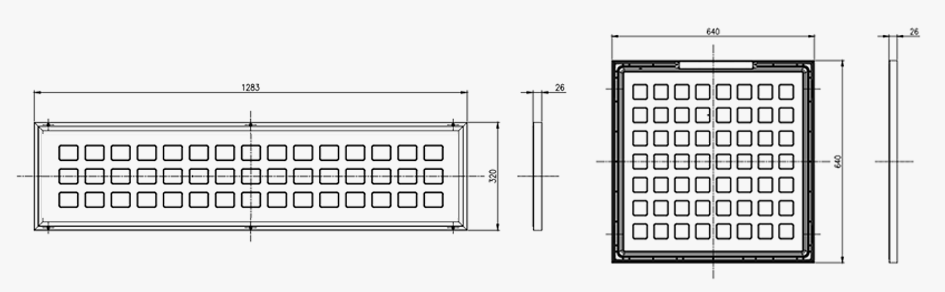

Drawings

  • Buried
  • No drilling
