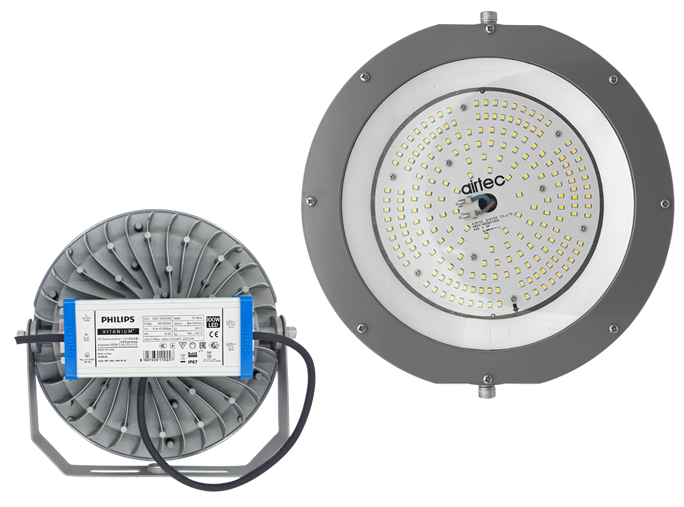

Highbay light (high efficiency)
- · Excellent durability and light weight
- · I Bolt or wall type and tilting method available
- · Install bracket is basic configuration
- · Waterproof and dustproof rating IP67, Surge resistance 4.0kV
- · Chain type, nipple type, pipe type available for common use
- · Minimize light loss by using self-developed lens-integrated cover (lens type)
- · Specialized in energy saving with very high light efficiency,
the high light efficiency 100W product has a brightness equivalent to our high efficiency product 150W - · LED Package : Samsung LED
- · Made to order for freezing warehouse (Available at -40℃)
- · Factory, Logistics warehouse, Sports facility, Freezing warehouse, etc
Specification
Class | Model | Watt- age (W) |
Lumen (lm) |
Effici- ency (lm/W) |
Col.Temp (K) |
Size | Certifi- cate |
---|---|---|---|---|---|---|---|
Lens type | To be certified | 80 | 150 ↑ | 12,300 ↑ | 5,700 | Φ262 x 168(H) | KS,HE |
To be certified | 100 | 150 ↑ | 14,500 ↑ | 5,700 | Φ262 x 168(H) | KS,HE | |
Normal | FDO-080W578S | 80 | 160 ↑ | 13,000 ↑ | 5,700 | Φ262 x 168(H) | KS,HE |
FDO-100W578S | 100 | 160 ↑ | 15,600 ↑ | 5,700 | Φ262 x 168(H) | KS,HE | |

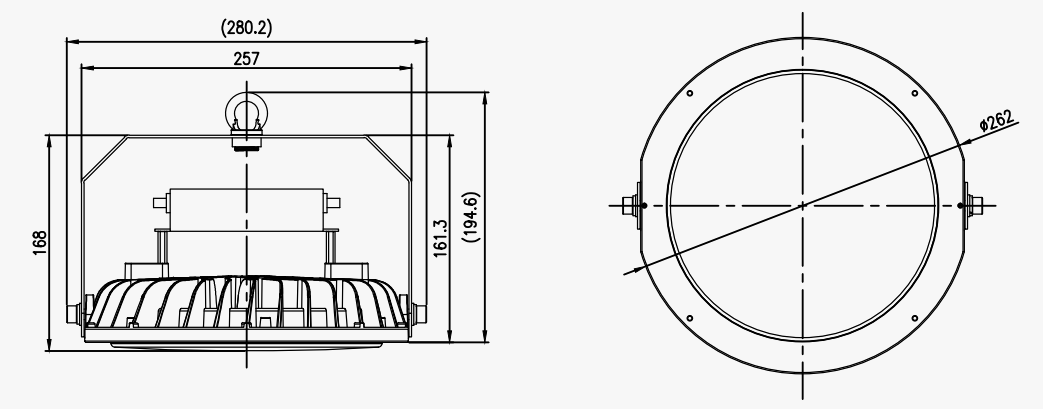

Drawings
- 80W, 100W
